WORLD CLASS TECHNOLOGY IN

MAMMOTH PROPORTIONS

The Industrial Series from Mammoth Fans are Super High Volume, Low Speed (SHVLS) fans delivering maximum results in a wider range of applications. These fans use world class PMSM technology for larger air volume and a cooler more comfortable space.


WIDE RANGE OF APPLICATIONS FOR:

  • Warehouses
  • Indoor sports centres
  • Activity/play centres
  • Transportation terminals
  • Commercial sites
  • Alfresco dining areas
  • Large format retail stores

DESIGN

FEATURES & ELEMENTS

1-8 °C

effective body cooling*

*depending on speed selection

SPEED

 1 – 4m/s wind speed regulation

MIXES

excellent air circulation

REDUCES

 ideal for dehumidification and reducing dampness

LOW MAINTENANCE

The Mammoth Industrial Series motor does not have a gear box and therefore no significant maintenance is required. Maintaining cooling systems with traditional gear drives can be costly and time consuming. But thanks to the technology of the PMSM, electromagnetic interaction and bearing transmission, plus the advanced air-cooled design of the Mammoth motor, simple maintenance of cleaning the blades and checking all support wires, blade bolts are tightened is all the maintenance required. The Mammoth Fan is virtually maintenance free.

CONTROL BOX

Long lasting, robust, smart and reliable.

With trouble shooting options available from the front panel, access to the internals of the controller are rarely required. From the control box you can clearly see how much power is being used to operate the fan, and also easily control the speed of the fan.

For information on troubleshooting refer to the installation manual.

READY TO ENTER A NEW AGE?

Mammoth Fans has the perfect solution for your project. Our team is here to assist with your query. Request a Quote to learn more about Mammoth Fans.

TECHNICAL

SPECIFICATIONS

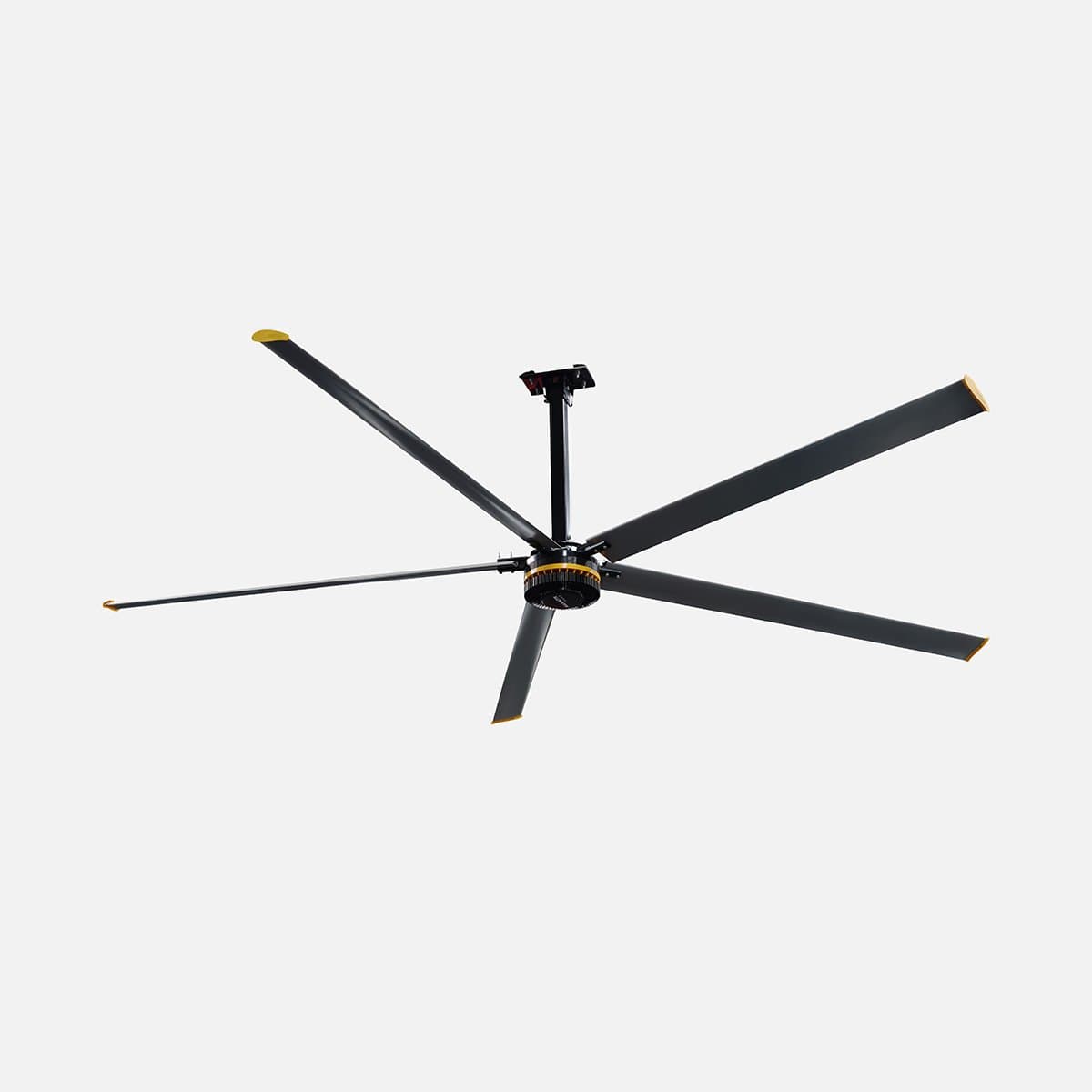

5.5 METRE FAN

SKU

211401

WIDTH / DIAMETER (MM)

5500

BLADES

5

WEIGHT

120kg

POWER

0.9kw

INPUT VOLTAGE

Single phase 220-240V

FULL LOAD CURRENT

4.1A

NOISE LEVEL

43dB

FAN SPEED CONTROL

70rpm max

WARRANTY

5 years from d.o.p *
* Valid for 5 years from date of purchase

EXTENSION ROD

1000mm, 1500mm, 2000mm optional extra

COLOUR

Silver

WIRING CABLE

4 core, 1.5mm, 20m

3 core, 2.5mm, 15m

IP RATING

IP55

AIRFLOW

12,200m3/min

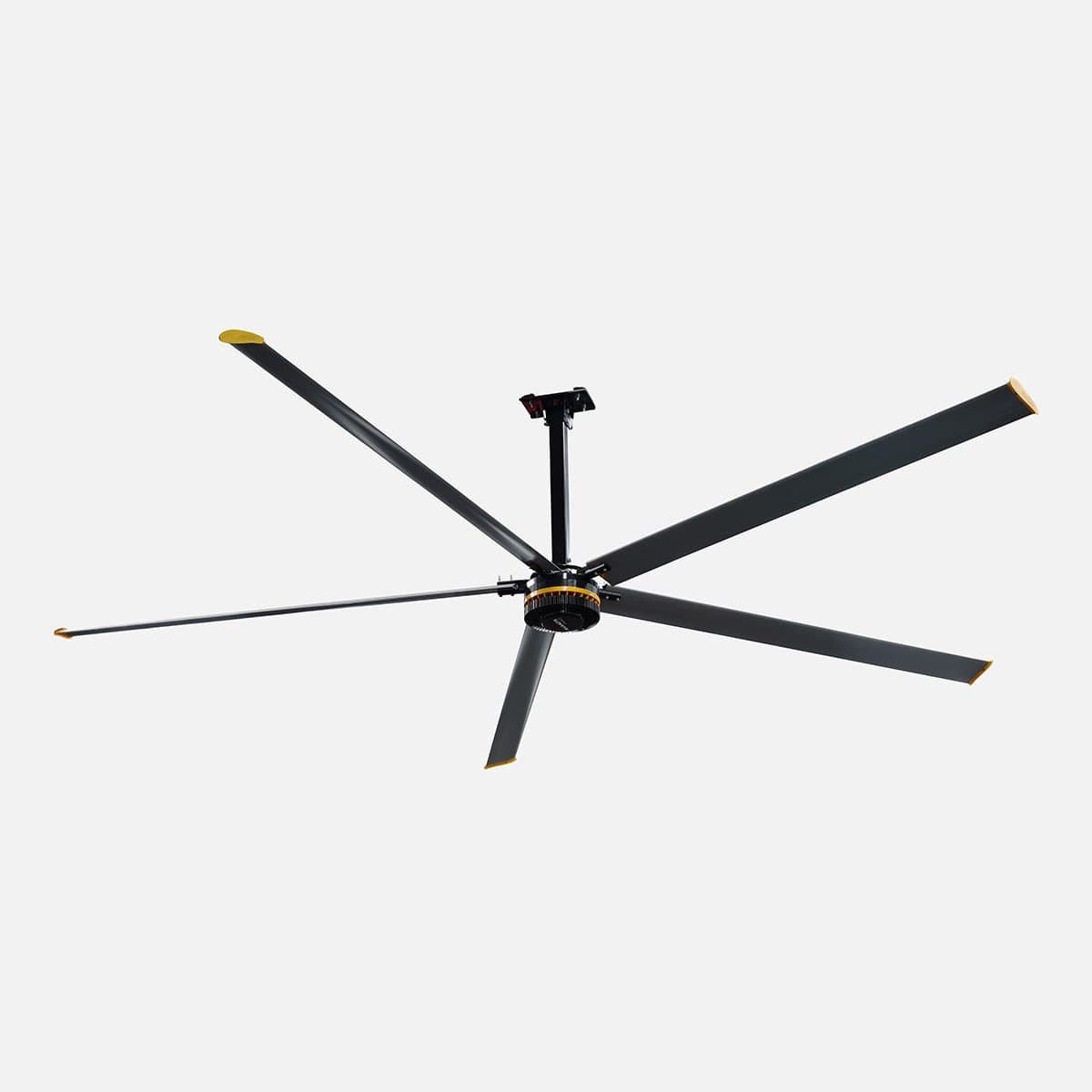

6.1 METRE FAN

SKU

211416

WIDTH / DIAMETER (MM)

6100

BLADES

5

WEIGHT

129kg

POWER

1.1kw

INPUT VOLTAGE

Single phase 220-240V

FULL LOAD CURRENT

5.0A

NOISE LEVEL

43dB

FAN SPEED CONTROL

60rpm max

WARRANTY

5 years from d.o.p *
* Valid for 5 years from date of purchase

EXTENSION ROD

1000mm, 1500mm, 2000mm optional extra

COLOUR

Silver

WIRING CABLE

4 core, 1.5mm, 20m

3 core, 2.5mm, 15m

IP RATING

IP55

AIRFLOW

12,900m3/min

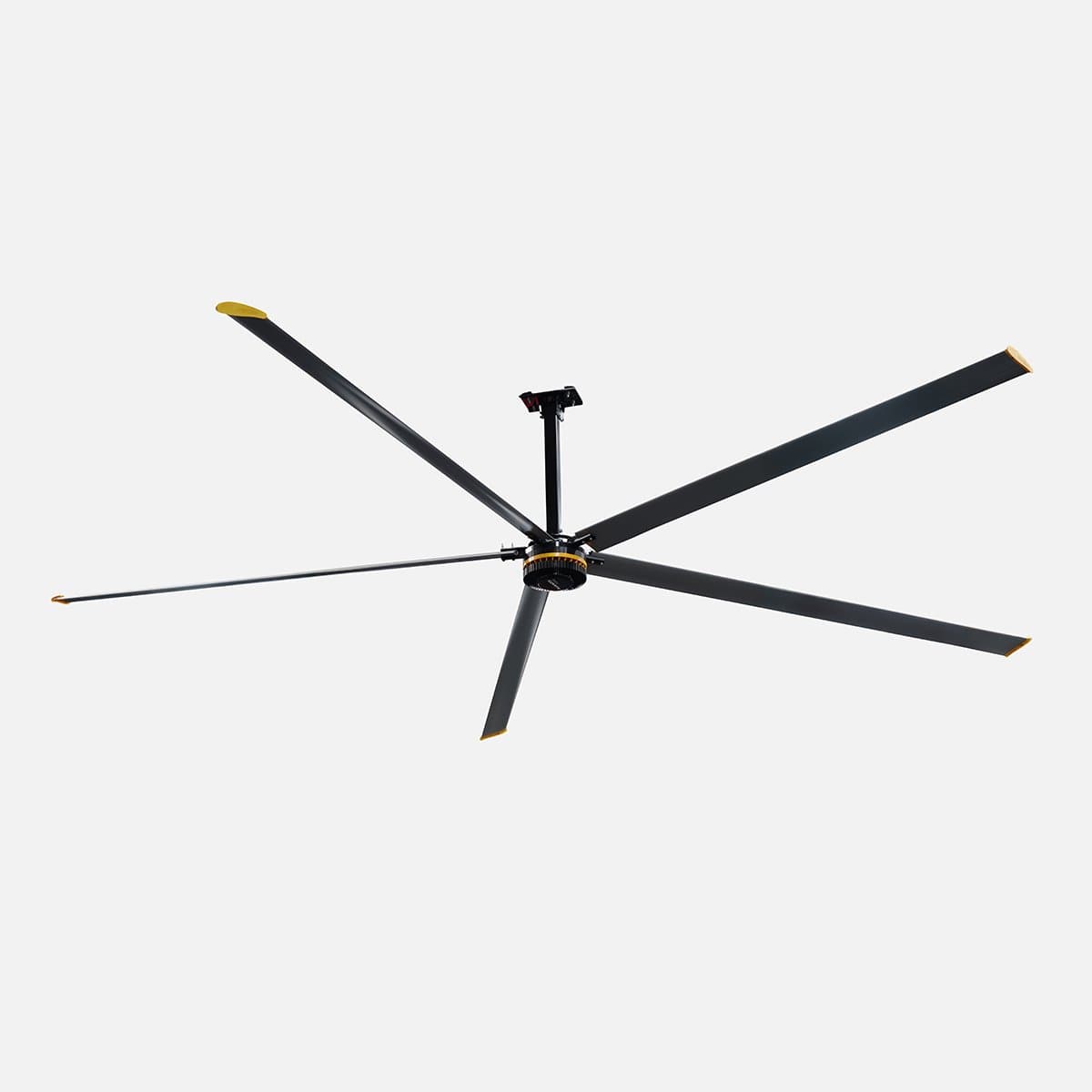

7.3 METRE FAN

SKU

211400

WIDTH / DIAMETER (MM)

7300

BLADES

5

WEIGHT

135kg

POWER

1.5kw

INPUT VOLTAGE

Single phase 220-240V

FULL LOAD CURRENT

6.8A

NOISE LEVEL

43dB

FAN SPEED CONTROL

57rpm max

WARRANTY

5 years from d.o.p *
*Valid for 5 years from date of purchase

EXTENSION ROD

1000mm, 2000mm, 2200mm optional extra

COLOUR

Silver

WIRING CABLE

4 core, 1.5mm, 20m

3 core, 2.5mm, 15m

IP RATING

IP55

AIRFLOW

14,800m3/min MAX

GET UP CLOSE AND PERSONAL WITH

MAMMOTH FANS

Request a quote

Ready to enter a new age?

Whether you have an industrial complex or large alfresco area, our experts are here to make your life easier, more comfortable and less expensive.
